Development Systems
The DS0002 DevBoard Development System and the CC0064 Controller allow for rapid prototyping. They are based on the same controller we use in all of our CP Control Panels, which can be transferred from the DevBoard to a key matrix to create a fully functional control panel.

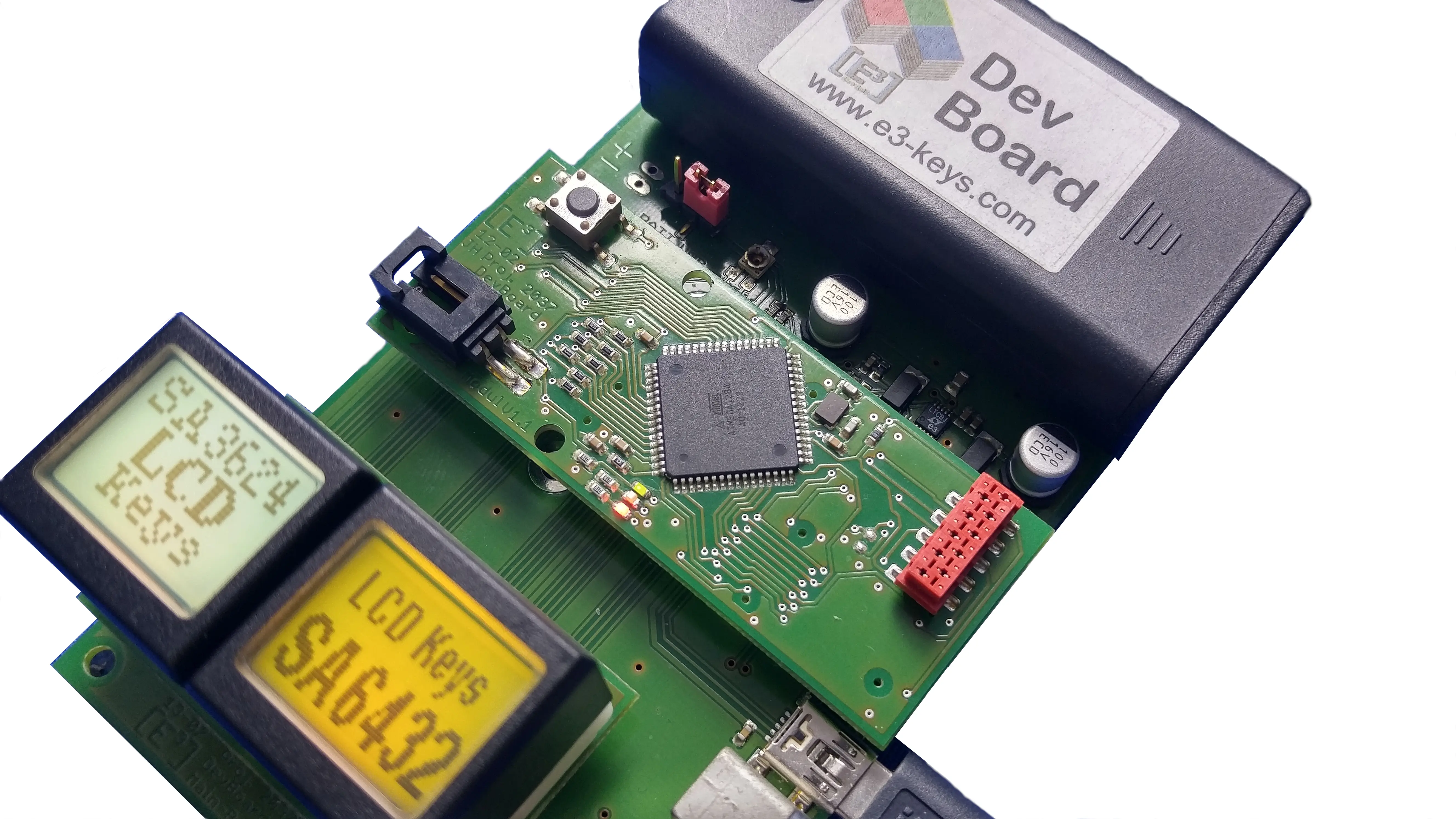

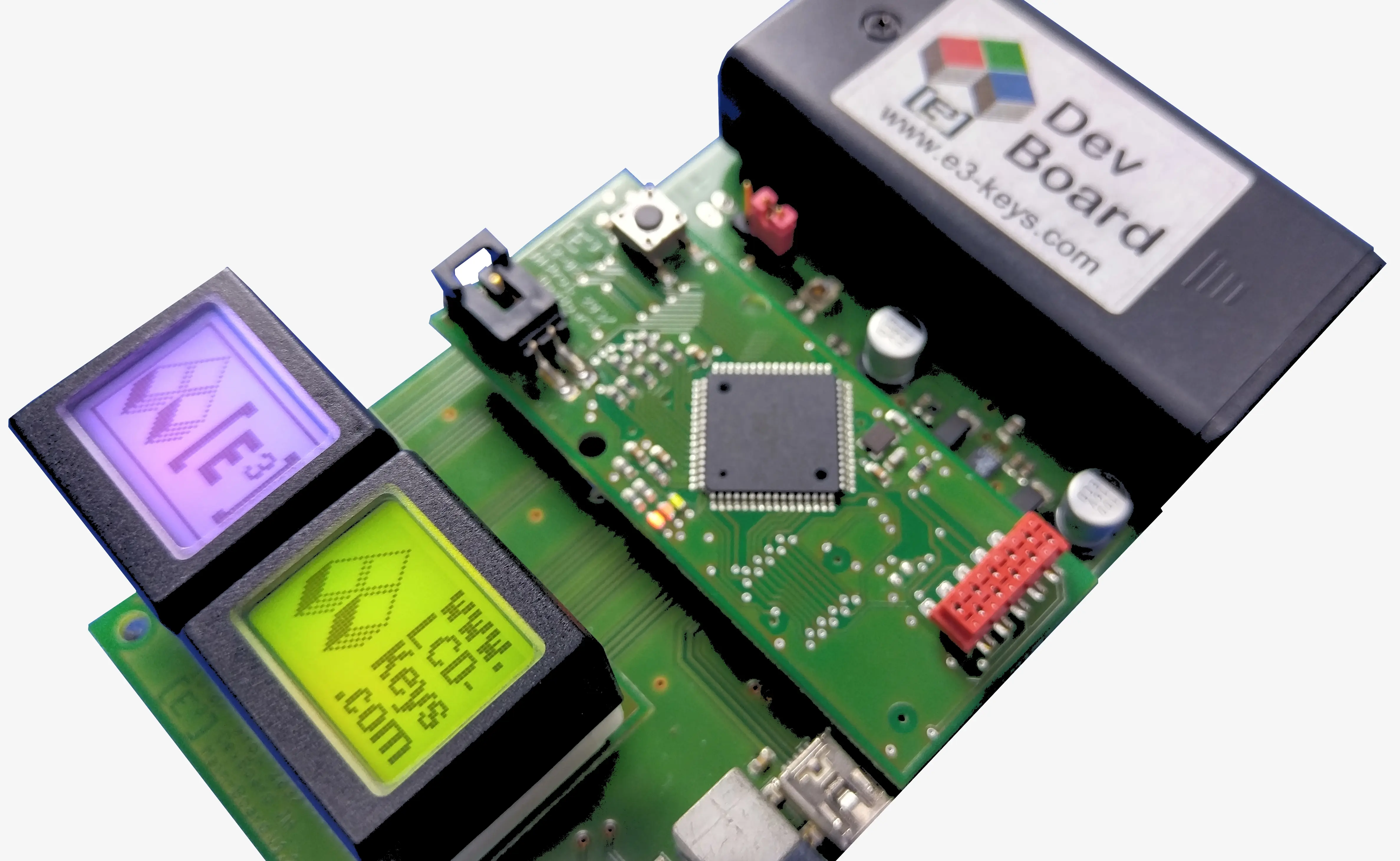

DS0002 DevBoard
DevBoard Development System
The DS0002 DevBoard Development System combines a key matrix with 2 Sx or 6 Tx switches, an interface board with battery compartment and both RS232 and Mini USB connectors, and the CC0064 controller. As a result, the DevBoard is a full fledged development system with all the capabilities of our CP Series control panels.
CC0064 Controller
- Type of switches: All Tx and Sx Series switches
- No. of switches: up to 64
- Interfaces: RS232 & USB standard - Serial-to-Ethernet optional via separate adapter
- Datasheet: CC0064-SU_v3.2en.pdf

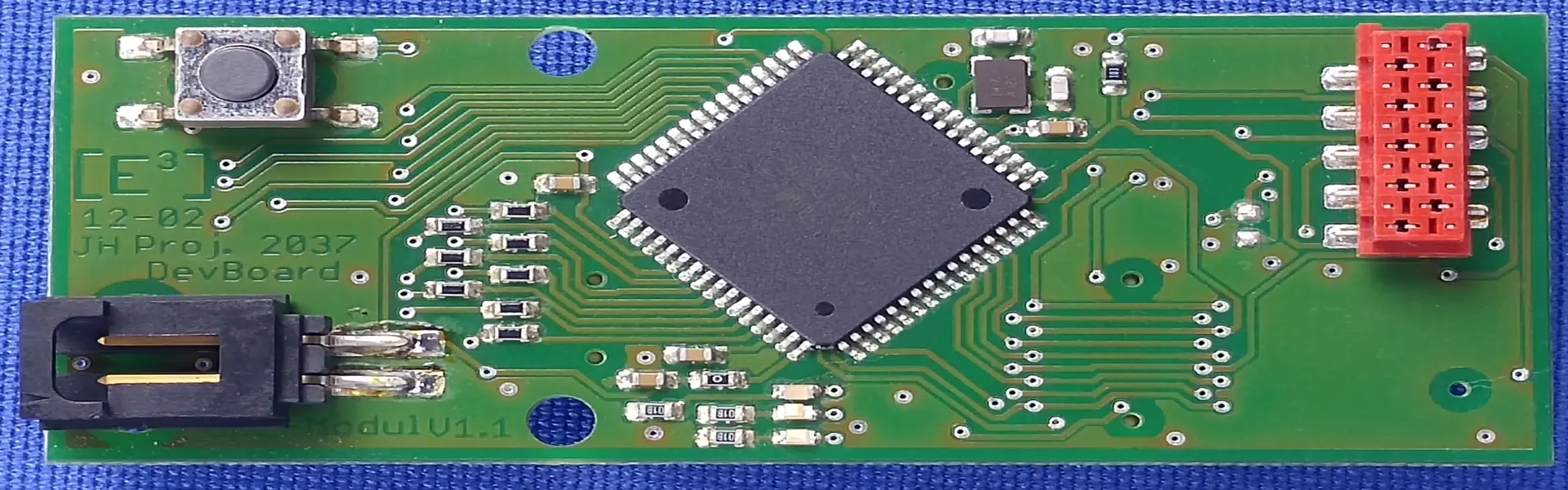

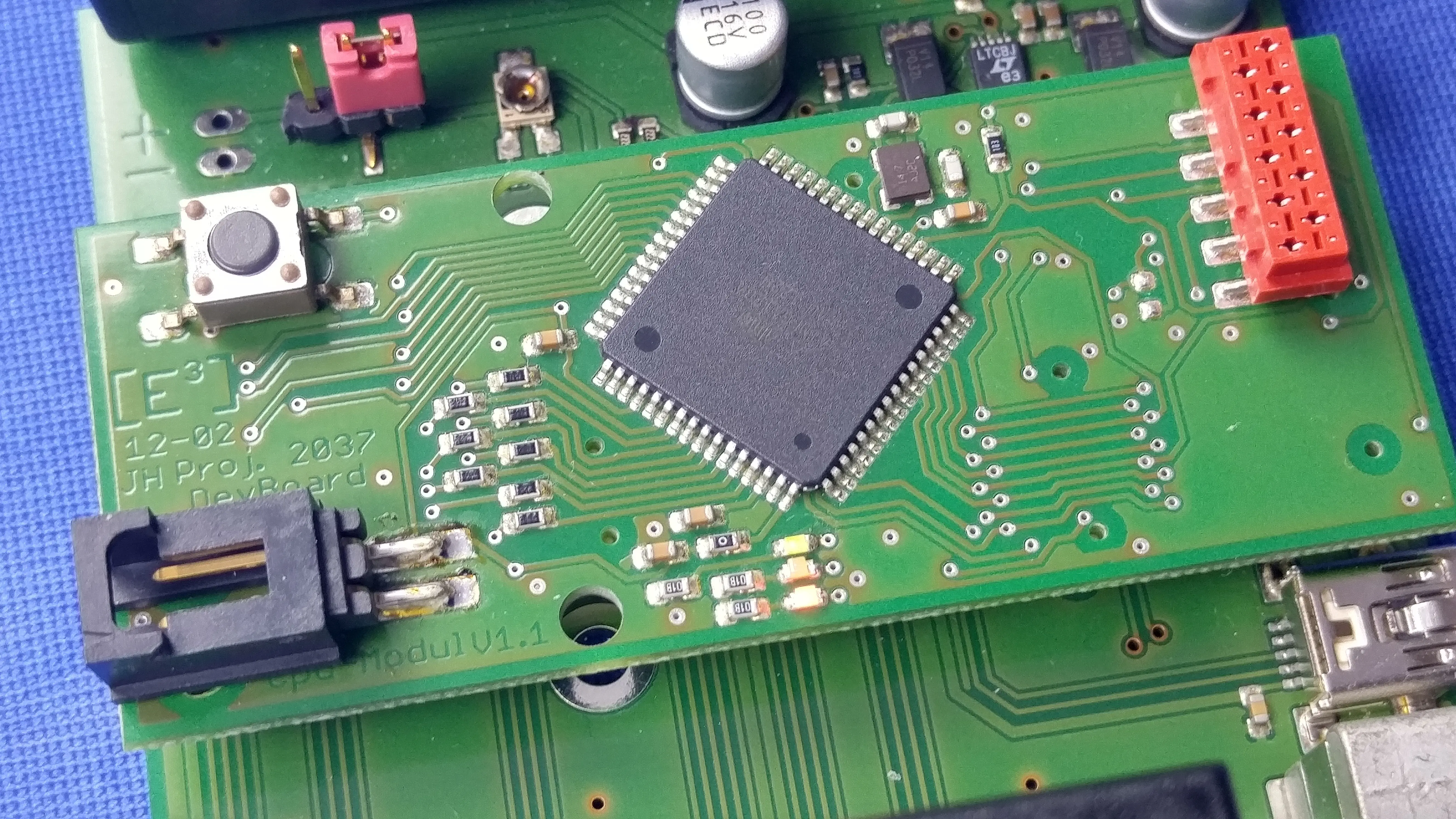

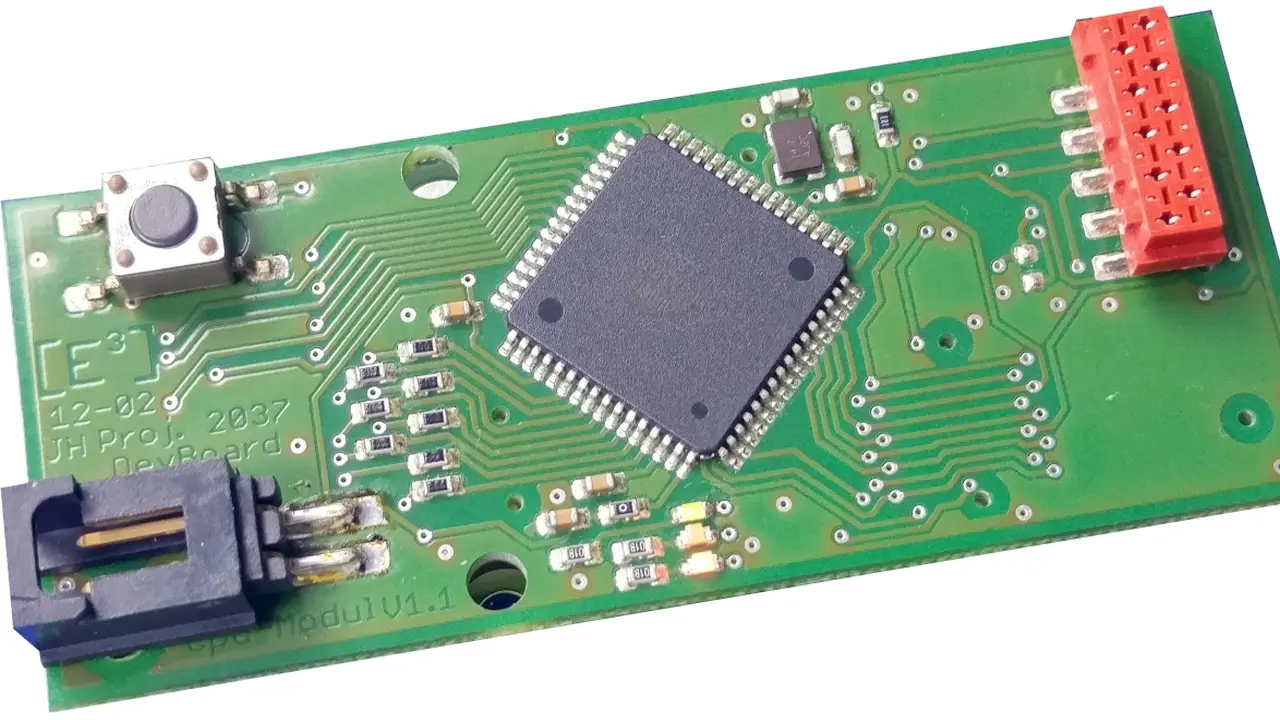

CC0064 Controller
The CC0064 is our standard controller for both the DS0002 DevBoard Development System as well as all CP Series control panels. The controller features both RS232 and USB interfaces and supports on board image libraries for up to 256 bitmaps as well as 2 standard and 2 user-definable fonts. The CC0064 is capable to control uo tp 64 Sx and/or Tx switches.
