Programmable LCD Keys


All LCD switches from [E³] are fully programmable, RGB-backlit LCD push-button keyswitches with

  • Command-driven synchronous serial 8-bit interface
  • Controlled by a two-wire SPI
  • All switches self-initialize
  • No permanent clock required
  • Data transmission speeds of up to 2 MBaud



  • Only six contact terminals for
    power, ground, clock, data and switch contacts
  • Graphic LCD with up to 64 x 32 pixel resolution
  • RGB backlighting in over 1 million colors
  • Low power consumption (<25mA typ.; <60 mA max.)

TE6432

TE6432

  • Resolution: 64 x 32 pixels
  • RGB Backlighting: MSC™ two segment backlighting in over 1 million RGB colors.
  • Compatibility: SE6432 - SC6432
  • Datasheet: TE6432_v1.0en.pdf

All the features of the SE6432 in a smaller footprint

All-NEW programmable, RGB-backlit LCD-Keys with MSC™ in a smaller 19.6mm x 17.6mm footprint offering the same features as the SE6432 keys with Multi-Segment Color MSC™.

Back to top

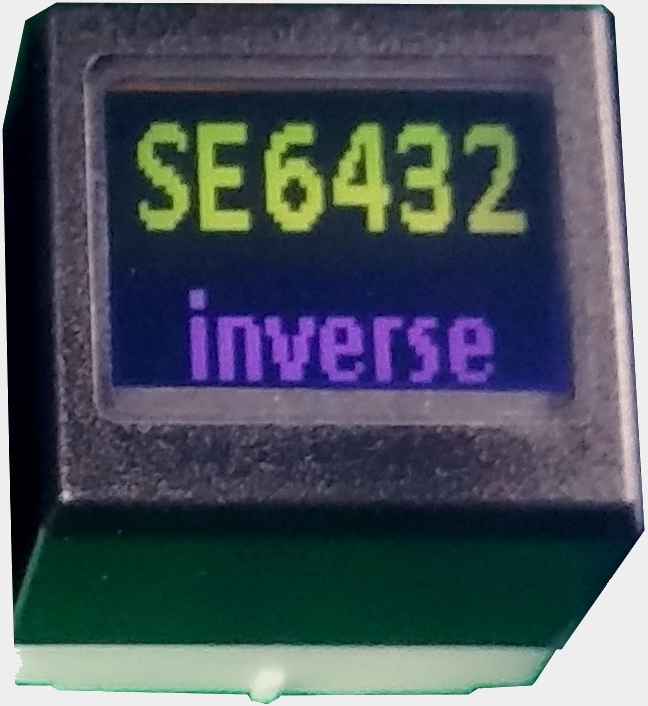

SE6432

SE6432

  • Resolution: 64 x 32 pixels
  • RGB Backlighting: MSC™ two segment backlighting in over 1 million RGB colors.
  • Compatibility: TE6432 - SC6432
    backwards compatible to SA6432 and SB6432 switches
  • Datasheet: SE6432_v1.0en.pdf

All-NEW electronics and inverse LCD with Multi-Segment Color MSC™

Updated electronics and display with Multi-Segment Color in 2 display segments with improved contrast, viewing angle and power consumption while maintaining full compatibility with SA6432 and SB6432 switches for drop-in system upgrades.

Back to top
SC6432

SC6432

  • Resolution: 64 x 32 pixels
  • RGB Backlighting: backlighting in over 1 million RGB colors.
  • Compatibility: TE6432 -SE6432
    backwards compatible to SA6432 and SB6432 switches
  • Datasheet: SC6432_v1.0en.pdf

All NEW electronics and LCD

All-NEW programmable, RGB-backlit LCD-Keys with updated electronics, positive DFSTN LCD for continued product support and availability.

Back to top
SD3624

SD3624

  • Resolution: 36 x 24 pixels
  • RGB Backlighting: MSC™ two segment backlighting in over 1 million RGB colors.
  • Compatibility: TE6432 - SE6432 - SC6432
    backwards compatible with SA3624 switches with Legacy Mode™ support
  • Datasheet: SD3624_v1.0en.pdf

All NEW electronics and LCD including MSC™

Updated electronics and LCD for improved contract, viewing angle and power consumption including Multi-Segment Color MSC™ 2 segment background color. The inverse LCD is set to Positive Mode for backwards compatibilitz to SA3624 switches with Legacy Mode™ support for legacy systems based on SA3624 and LC24.2Trend switches.
