Control Panels


In addition to LCD Keys we offer control panel solutions based on the RGB-backlit LCD keys from [E³].

CP0304 & CP0604

  • Type of switches: all Sx Series switches
  • No. of switches: 12 (CP0304) - 24 (CP0604)
  • Interfaces: RS232 & USB
  • Datasheet: CP0304-SU_v2.1en.pdf or CP0604-SU_v2.1en.pdf

    Contact us here for information on TE6432 control panels.

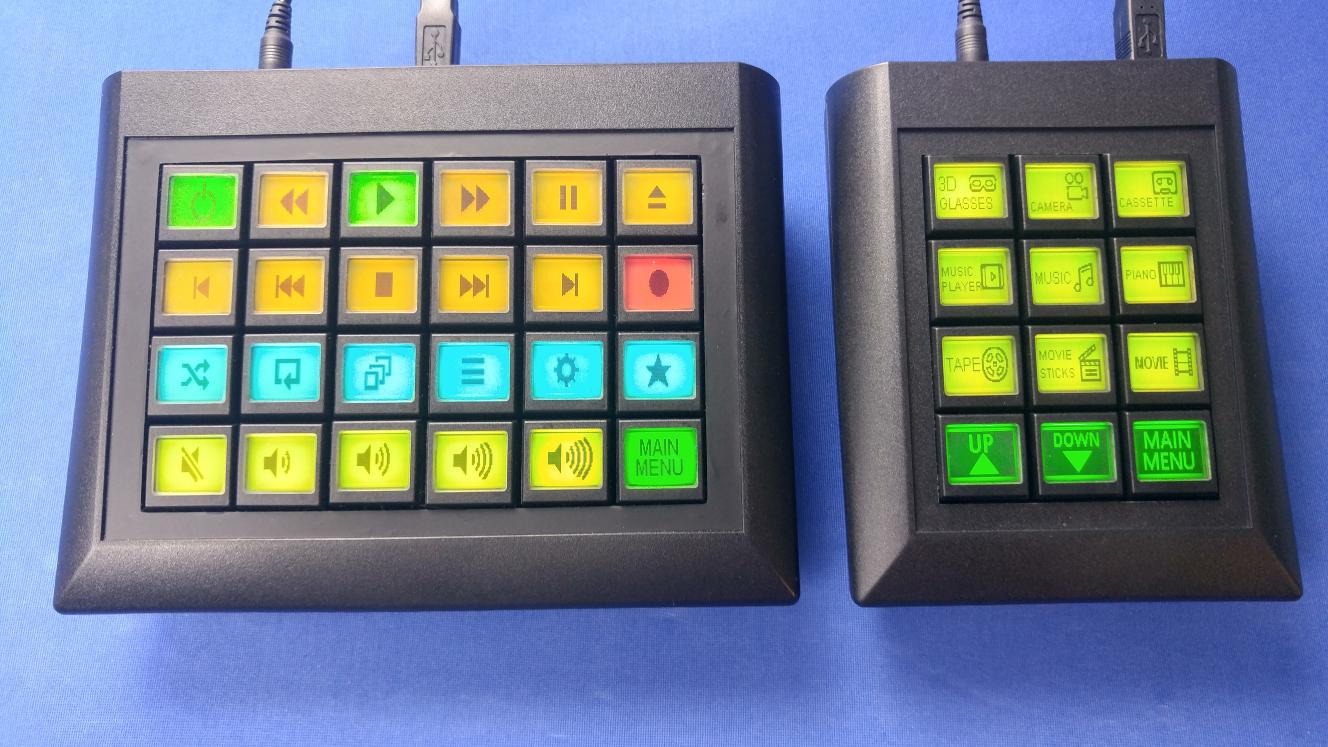

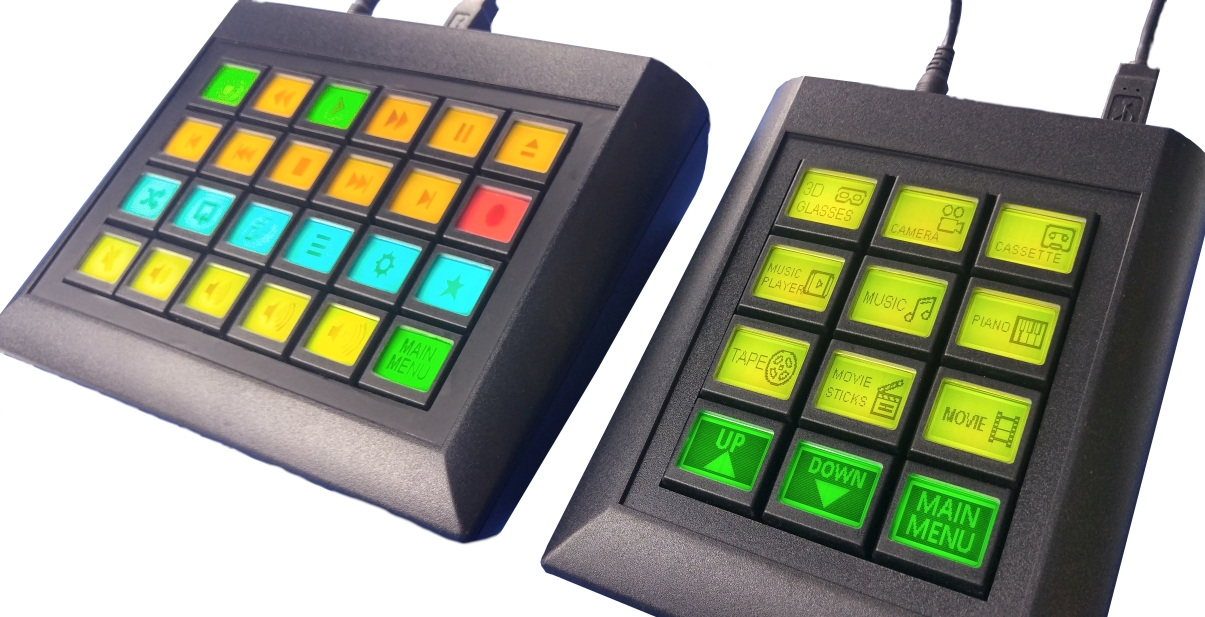

Desktop Control Panels

The CP0304 and CP0604 desktop control panels can use any of the Sx Series LCD keys. The panels are power via an external AC adapter and feature both RS232 and USB interface connections.
Each desktop panel is controlled by a standard CC0064 Controller with allow for bitmap libraries, default and user-defined fonts, READ command support and more.

Back to top

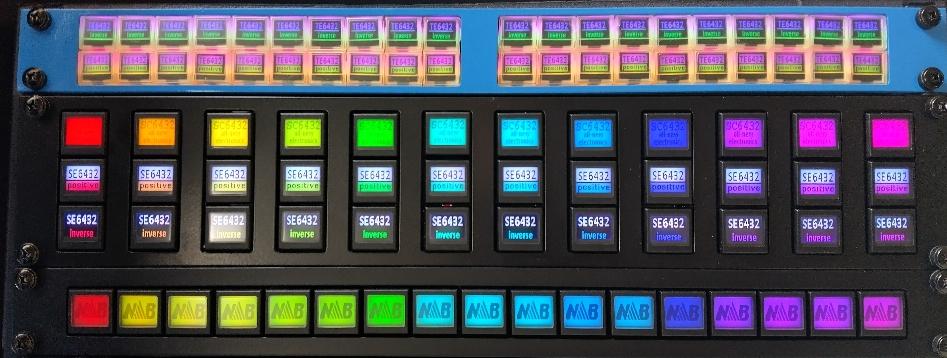

CP12, CP17 & CP20 Series

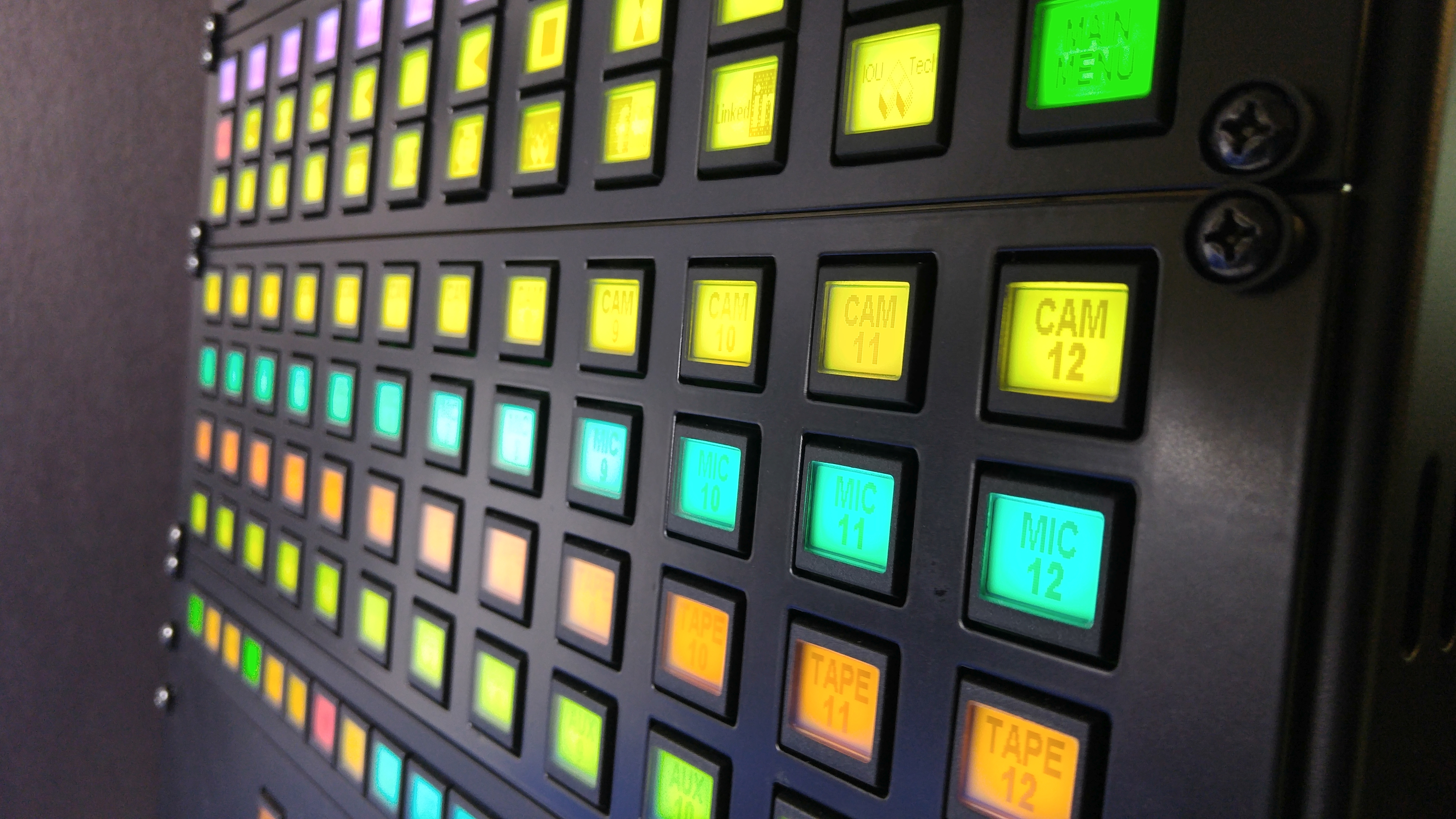

Rack-Mount Control Panels

19-inch rack-mount control panels are available in 1HU, 2H and 3HU layouts with 12 or 17 Sx Series switches per row. The smaller footprint TE6432 switches allow for 2 rows of 20 switches in a 1HU panel.
Each desktop panel is controlled by a standard CC0064 Controller with allow for bitmap libraries, default and user-defined fonts, READ command support and more.
In addition to the standard RS232 and USB interfaces, rack-mount panels can be ordered with Serial-to-Ethernet interfaces.

Back to top

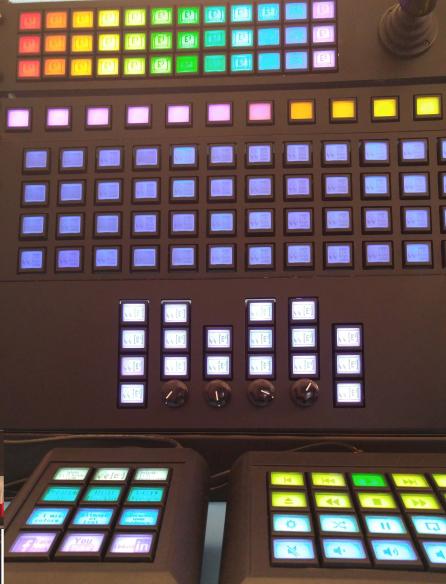

Custom Control Panels

  • Type of switches: Tx and Sx Series switches
  • No. of switches: customer specific
  • Interfaces: RS232 & USB, Ethernet, custom
  • Inquiries: Contact us here to discuss your specific requirements for custom control panels.

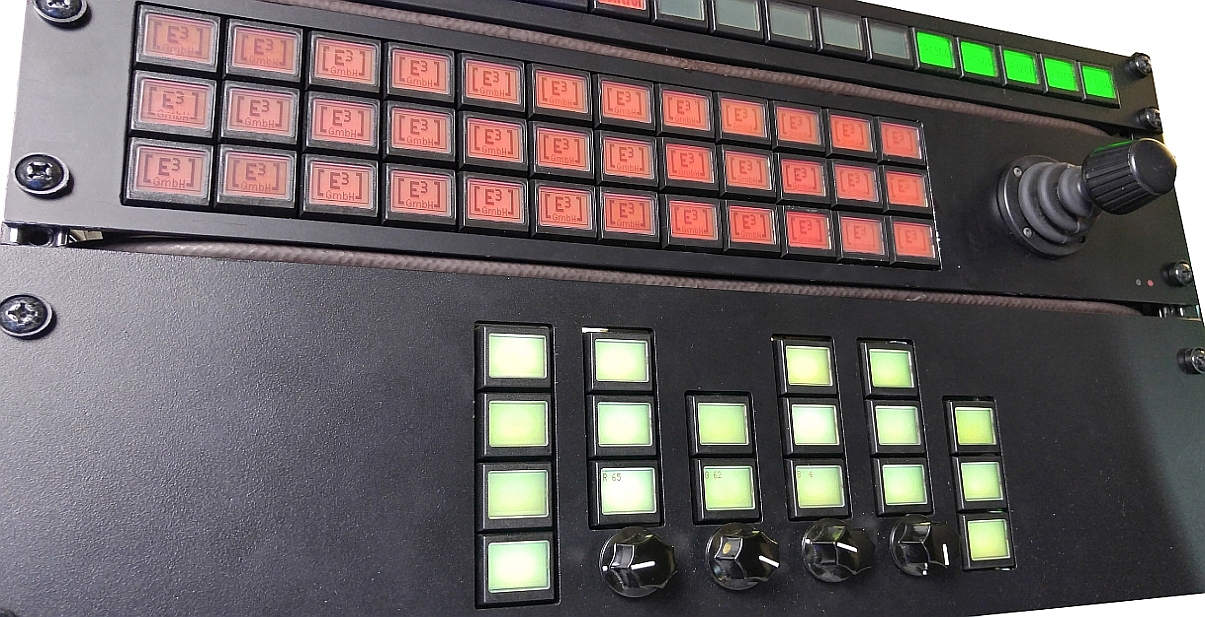

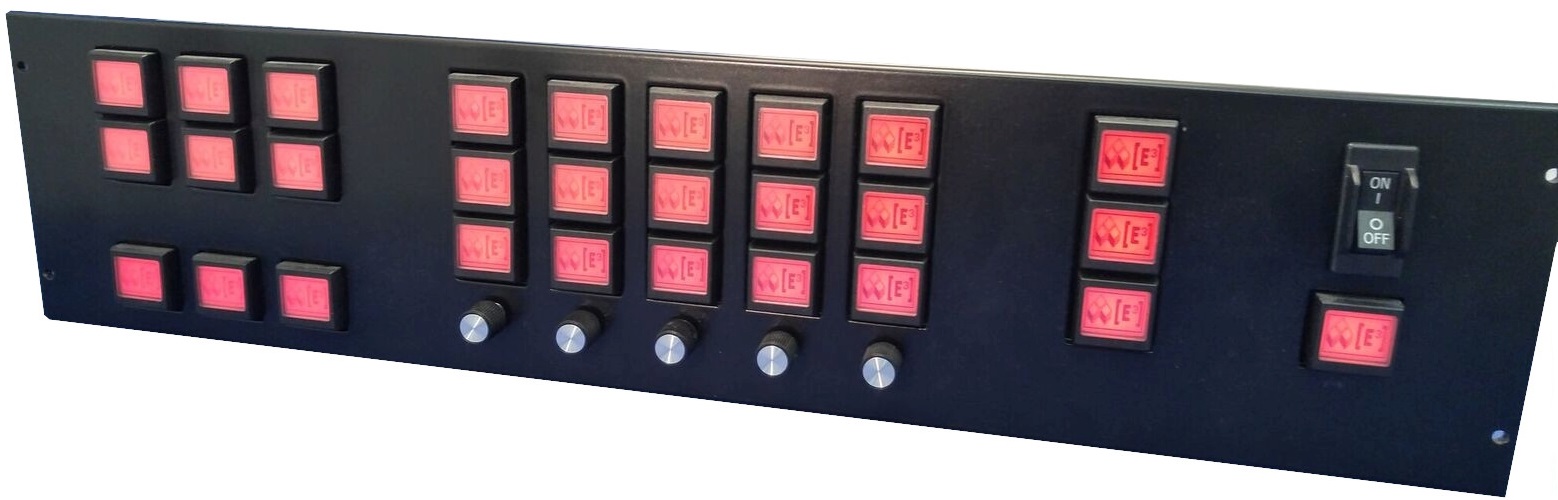

Custom Control Panels

We provide design support for design, development and manufacture of turn-key systems for custom control panels based on [E³]'s programmable RGB-backlit LCD keys for the most demanding environments and mission critical applications.
